36V 500W Brush Motor Speed Controller, Electric Bike Controller, Electric Scooter Controller for E Bike ATV Quad Razor Dirt Bike Go Kart Bicycle DIY Conversion Kit (with Accessories 1)

Upgrade your electric vehicle with this 36V 500W Brushed Motor Speed Controller, built to deliver superior performance and efficiency. With a 27±1A rated current and 95% conversion efficiency, this controller ensures your vehicle runs smoothly and reliably, providing a powerful boost to your electric scooter, bike, go-kart, ATV, or dirt bike.Safety and durability are prioritized with under-voltage protection (31.5±0.5V) to prevent damage to your battery and motor. The controller's 1-4V throttle input allows for accurate speed adjustments, enhancing your control and riding experience.Connector Guide:Red & Black (large cable): Battery positive and negative terminals.Yellow & Blue: Motor positive and negative terminals.Red & Blue: Key switch (power lock); can be bypassed if not required.Yellow & Black: Brake connection.Red & Yellow: Brake light connection.Red & Black (small cable): Indicator light.Red, Black & Blue: Throttle input (Red: +5V, Black: Ground, Blue: Signal).Red & Black (small cable): Charger connection.Important Installation Note: Ensure the battery, motor, key lock, and throttle connectors are properly connected to activate the motor.Specifications:Voltage: 36VWattage: 500WRated Current: 27±1AConversion Efficiency: 95%Under Voltage Protection: 31.5±0.5VThrottle Input: 1-4VThis 36V 500W Brushed Motor Speed Controller is an essential component for electric vehicle enthusiasts seeking enhanced performance and reliable operation. Its user-friendly design and superior features make it an excellent choice for your next upgrade!

• Powerful Performance: Designed to work seamlessly with 36V 500W brushed motors, providing reliable power for electric scooters, bikes, go-karts, ATVs, and dirt bikes.
• High Efficiency: Features a 27±1A rated current and 95% conversion efficiency, ensuring optimal energy utilization for extended performance.
• Enhanced Protection: Equipped with 31.5±0.5V under-voltage protection to safeguard the motor and battery from potential damage.

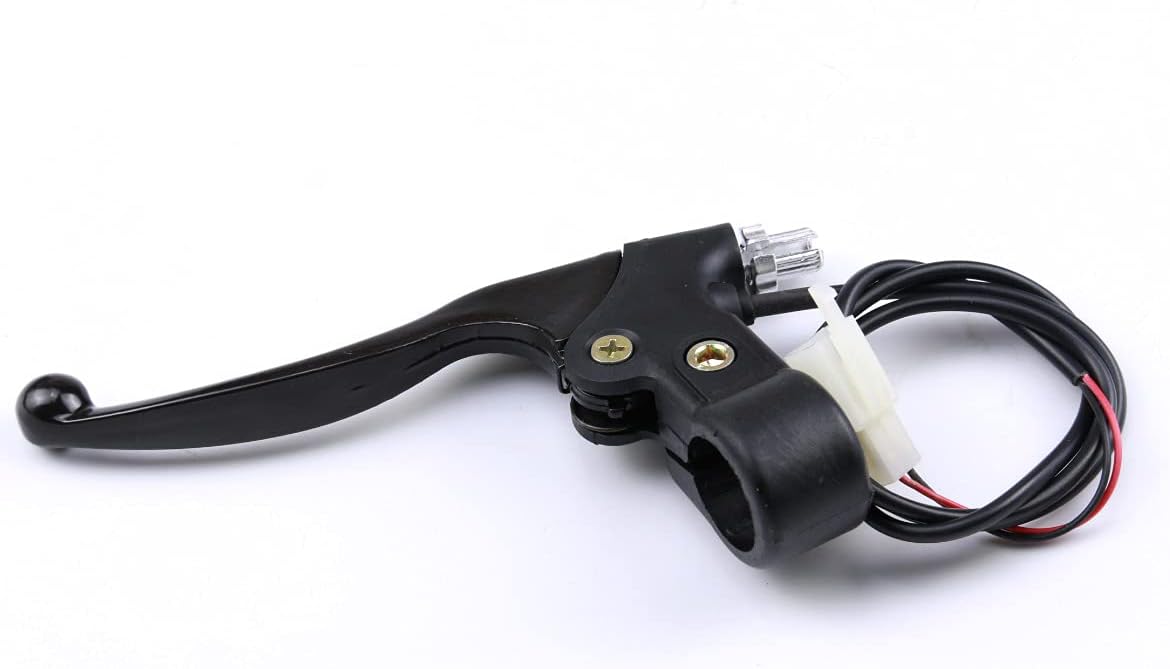

• Complete Kit for Enhanced Performance: Includes speed controller, thumb throttle, power indicator, brake lever, keylock switch, battery cable, charging port, terminal block, and reverse switch with cable—everything you need to get your vehicle running
• Easy Installation: Comes with pre-labeled connectors for battery, motor, key switch, throttle, brake, brake light, indicator light, and charger for quick setup.
